Anyone Can Draw app

UI/UX Design

The Idea:

The Anyone Can Draw app would be a vector-based drawing app somewhat similar to Adobe Illustrator. You can draw with something like the Pen Tool, or free hand it and refine it after it's drawn. The app would work on most smartphones/tablets, and even other touchscreen devices like Chromebooks! You can either use your fingers or a stylus to draw, so long as it's compatible with your device. The app would also have tutorials/guides on how to get started drawing, and there would also be tooltips for when using the app.

What I'm trying to solve with my app is people's fear of learning something new, specifically drawing in this case. It can be hard to start something new, especially without help. That's this app aims to do, guide people on how to start drawing and show them the process behind it, so they can feel comfortable doing it on their own later.

Developing Personas:

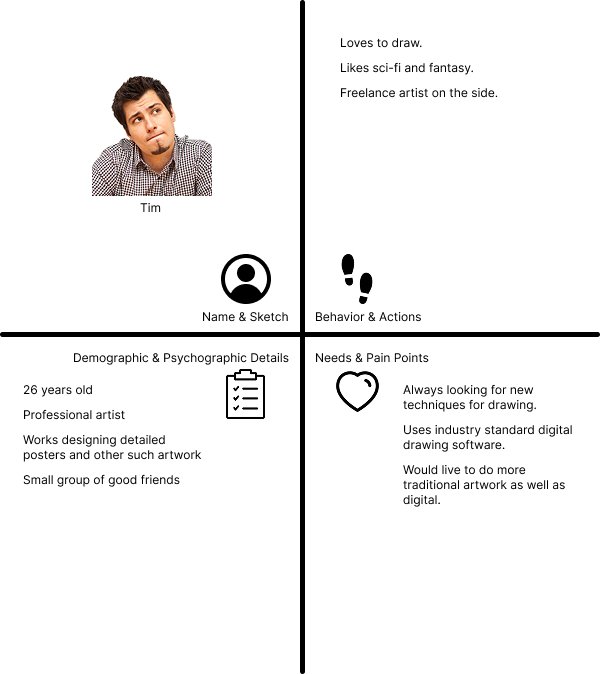

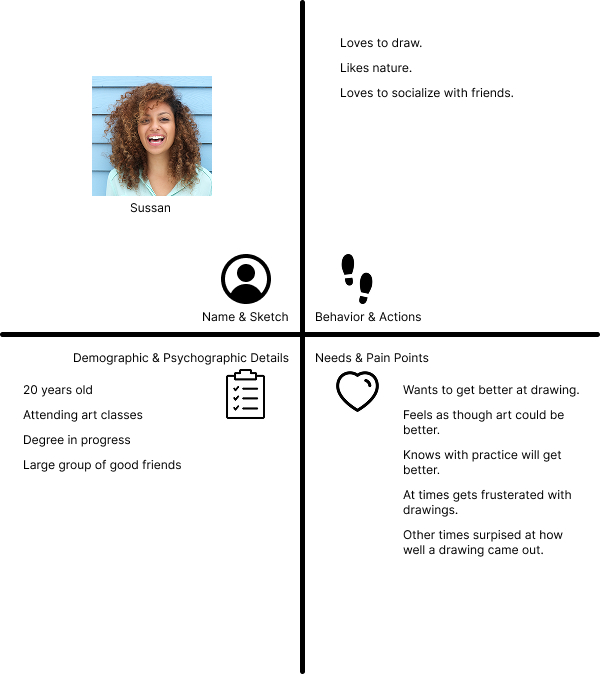

Proto-Personas

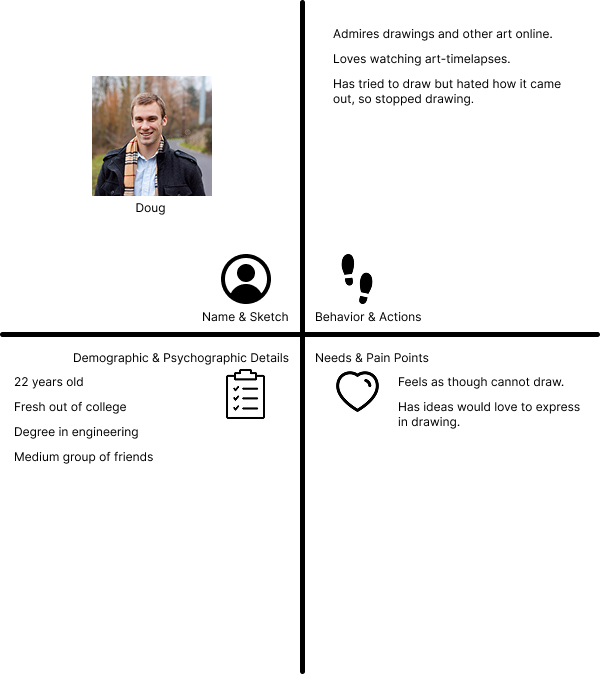

Before getting to design proper personas by doing user interviews, I developed proto-personas by trying to get in the mindset of three unique users who would be interested in using my app.

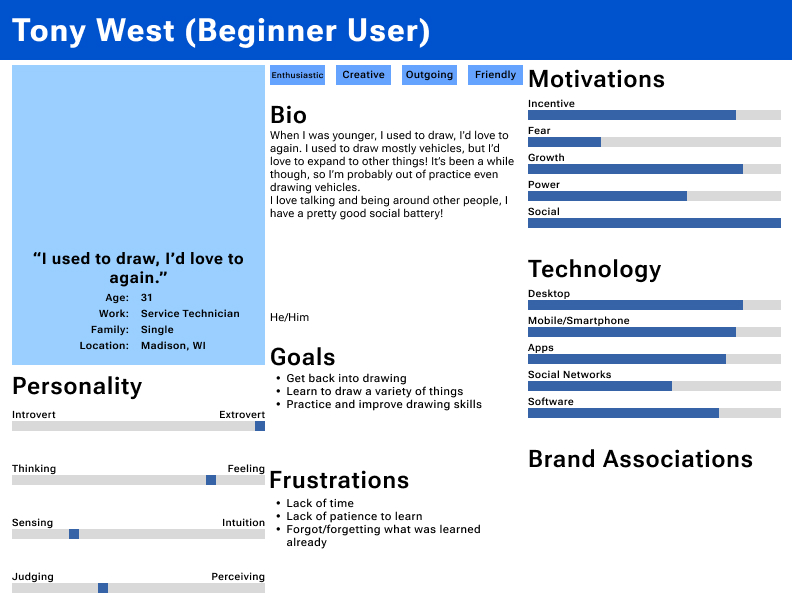

User Interviews & Personas

I put out a user survey to find good applicants who would make the basis of my actual personas. After getting 21 responses to my survey, I then narrowed down my potential candidate users to 7 and reached out again to them to get 3 declines, and 4 who agreed; I would have the 4th person be a backup in case any of the first three couldn't do the interview. I would then interview the 3 final candidate users using a user interview script, and record each candidate's responses in a text document, which I then used to develop fully fleshed out personas, but with personal details removed from the actual user.

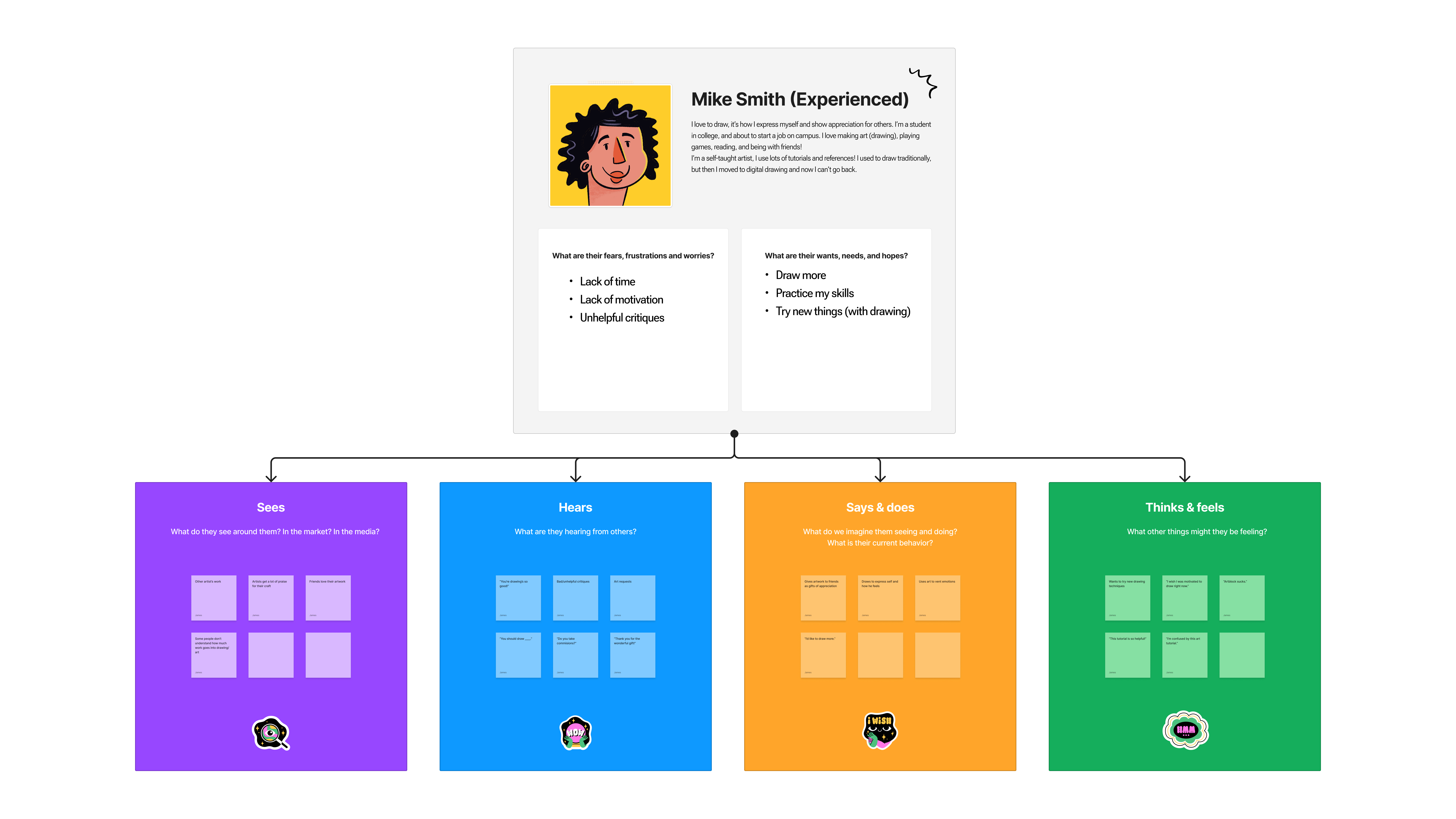

Empathy Maps

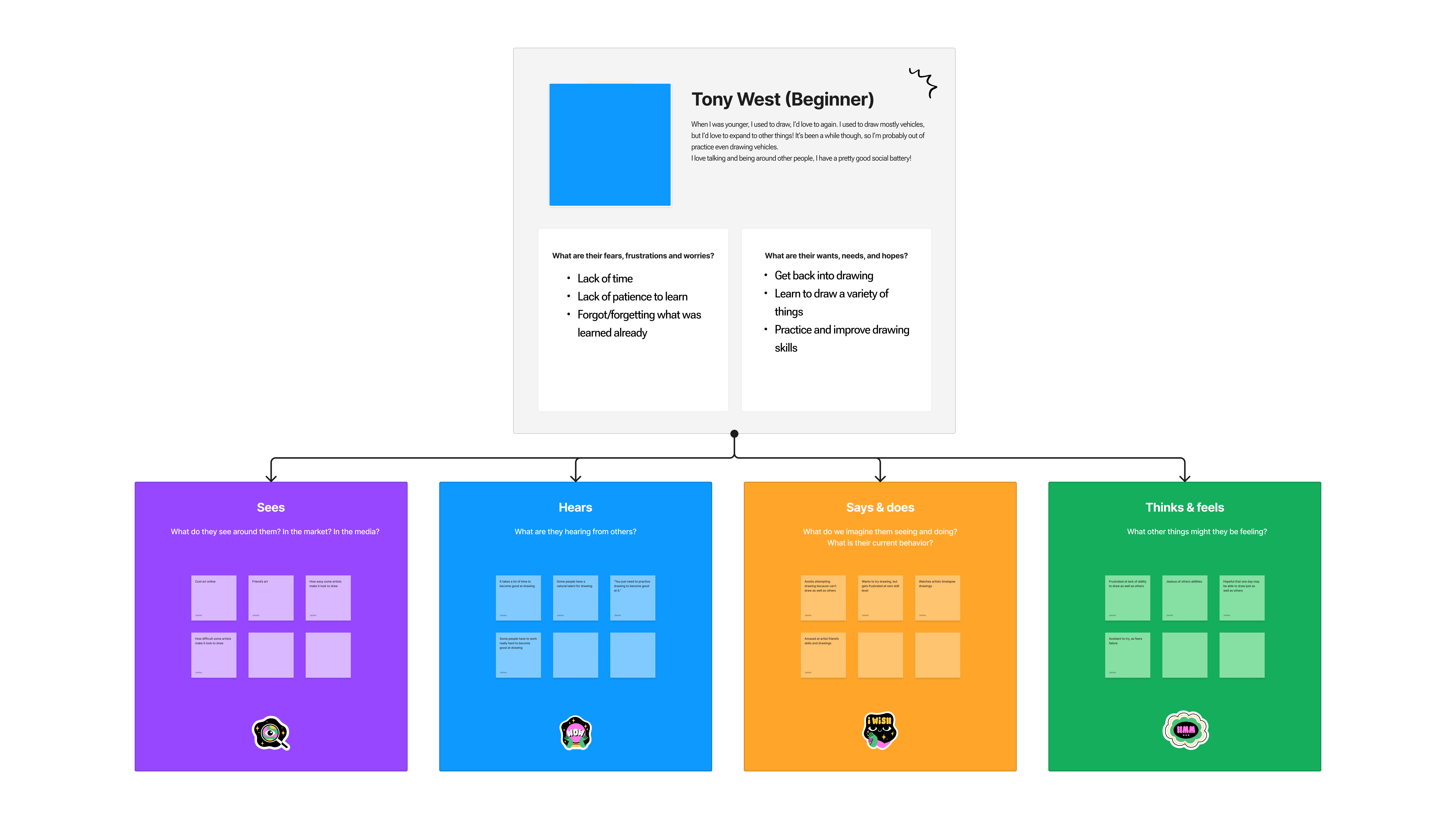

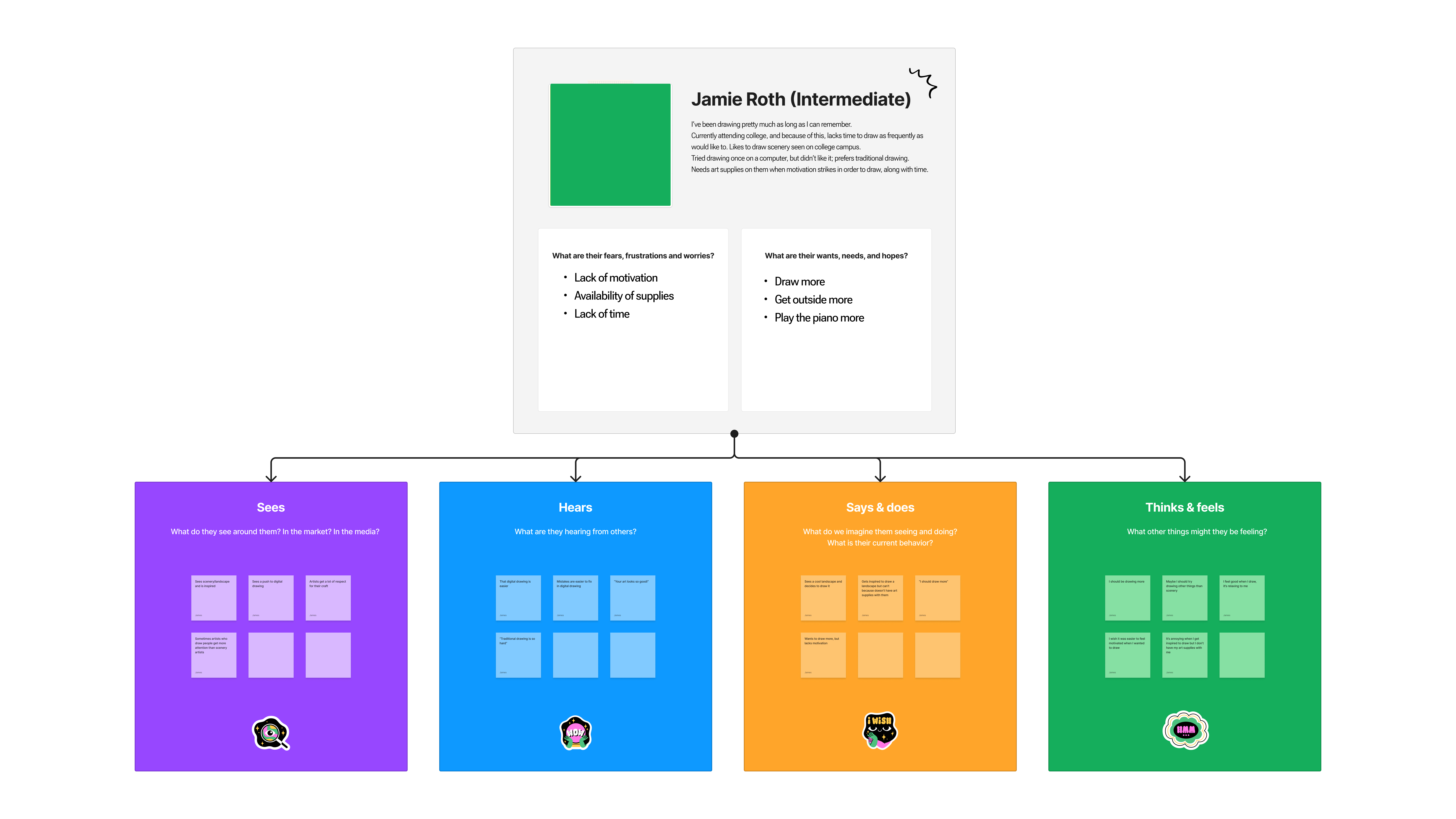

From the newly created personas, I would then move ahead to create empathy maps for each persona.

MVP

Next, I created MVP or Minimal Viable Product user stories

MVP Features	User Stories	UI Requirements
View template designs	As a user, I want to view what designs I can draw	Thumbnails of drawing templates
	As a user, I want to preview a larger image of the drawing template	Open a larger preview of the drawing template complete
View by category	As a user, I want to sort templates by category	Have a sort by category option
	As a user, I want to filter by category	Have a category filter to show only selected categories
Search designs	As a user, I want to search for a drawing template by name	Have search for specific drawing templates
	As a user, I want to search by drawing template name or category	Search results show categories or drawing template by name
Selecting a template	As a user, I would like to select a template to begin drawing	Open selected template
Drawing aid	As a user, I want to see a step-by-step how to draw process	Show each step and animate the line connecting the dots
	As a user, I want to follow dots to connect to form lines of my drawing	Show dots evenly spaced that form the lines of the drawing step
	As a user, I want the animation guide to replay if I haven't started the line yet	Loop animation of drawing step connecting the dots every few seconds until the user starts drawing
	As a user, I want to be able to turn off the animated guide	Ability to turn off the animated guide connecting the dots
	As a user, I want the ability to turn off the guiding dots connecting making the line	Turn off the guide dots
	As a user, I would like lines to trace	Display tracing lines
	As a user, I would like to turn off the tracing lines	Hide the tracing lines
	As a user, I want to view a grid	Display drawing grid
	As a user, I want to hide the grid	Hide drawing grid
	As a user, I would like to navigate to the next drawing step	Have a next step button
	As a user, I would like to navigate to the previous step	Have a previous step button
	As a user, I would like to see how many total steps there are for a given drawing	Show total number of steps in a drawing
	As a user, I would like to see the current step number I am viewing	Show current step number being viewed
Drawing	As a user, I would like to draw on the screen	Ability to draw in the app on the screen
	As a user, I would like the ability to change brush colors	Ability to change brush colors
	As a user, I would like to change brush size	Ability to change brush size
	As a user, I would like the ability to undo mistakes	Undo last drawing segment
	As a user, I would like to redo a drawing segment I made	Redo last undone drawing segment
	As a user, I would like the ability to erase mistakes	Eraser tool
	As a user, I would like the ability to draw straight lines	Press somewhere/button to make straight lines between points
	As a user, I would like the ability to make nice, curved lines	Have ability for line segments to be adjusted to curves of varying degrees
	As a user, I would like the ability to fill an area/drawing segment a different color	Fill area/section color tool (paint bucket)
	As a user, I would like to preview a straight line I am drawing before finalizing it	Drag-n-drop line drawing, from point a to b
	As a user, I would like to be able to select a portion of my screen/drawing	Selection tool to select an area or parts of drawings
	As a user, I would like to move selected area/segments to other parts on the drawing	Move tool
	As a user, I would like to be able to copy a portion of my selected drawing	Copy tool
	As a user, I would like to paste a copied portion of my drawing and move/place it into place	Paste tool, allows dragging to location before set
	As a user, I would like to be able to delete a selected segment/area	Delete selected tool
	As a user, I want to be able to zoom in and out on my drawings.	Pinch to zoom in/out with two fingers
Save	As a user, I would like to save my work in progress	Save drawing so far to edit later
	As a user, I would like to save a completed drawing to my device	Save/export drawing
Open Drawings	As a user, I would like to open previously saved drawings	Saved file browser Open selected file
Delete Drawings	As a user, I would like to delete old drawings	Delete drawings, but not templates
Suggestions / Contact	As a user, I would like to submit new drawing template ideas	Drawing template idea name Submit button
	As a user, I would like to contact support	Button to open support form (your email, description, send button)
App Details	As a user, I would like to know the app version I am on	Display app version

User Flows

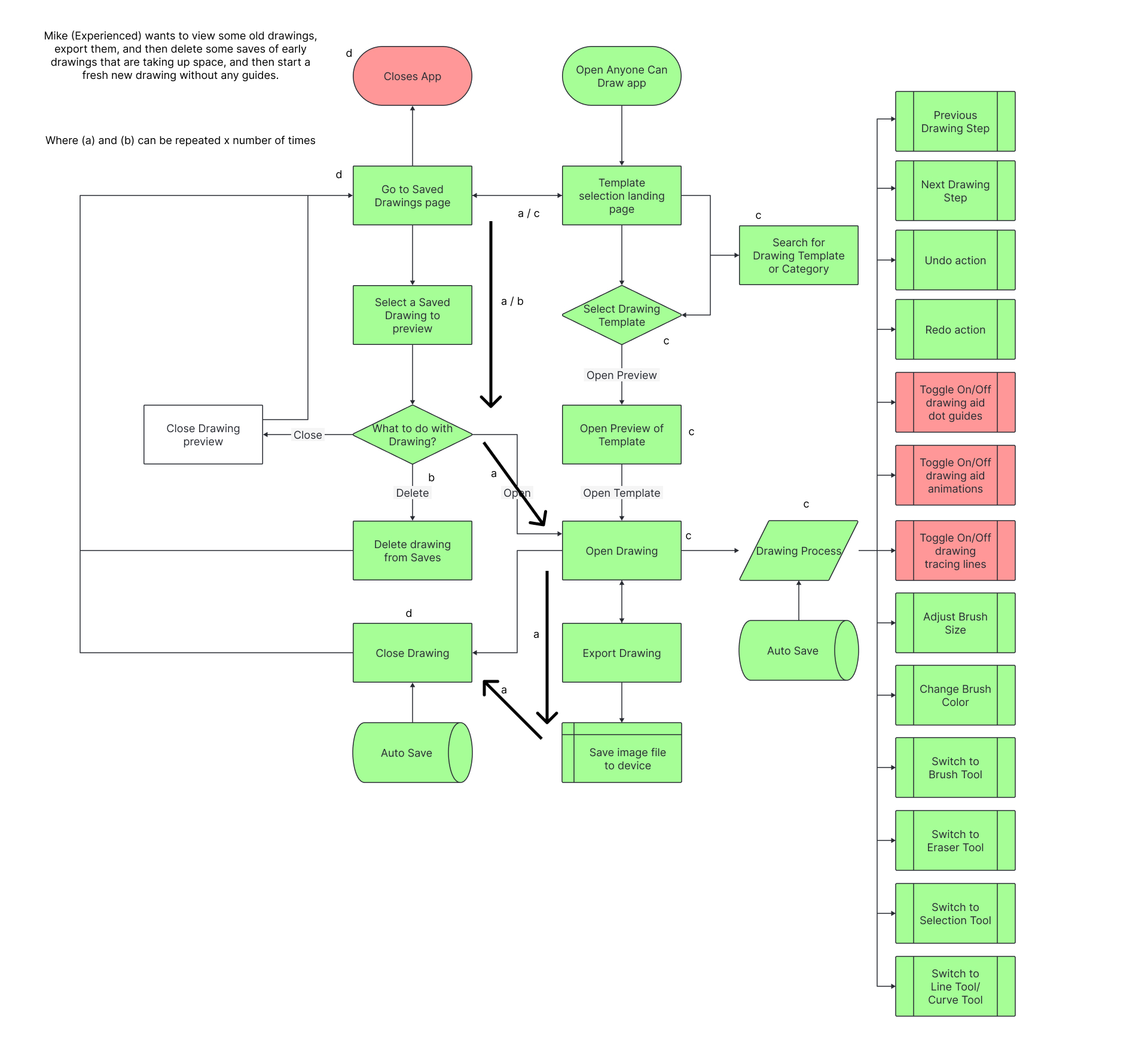

Persona 1 - Mike (Experienced) wants to view some old drawings, export them, and then delete some saves of early drawings that are taking up space, and then start a fresh new drawing without any guides.

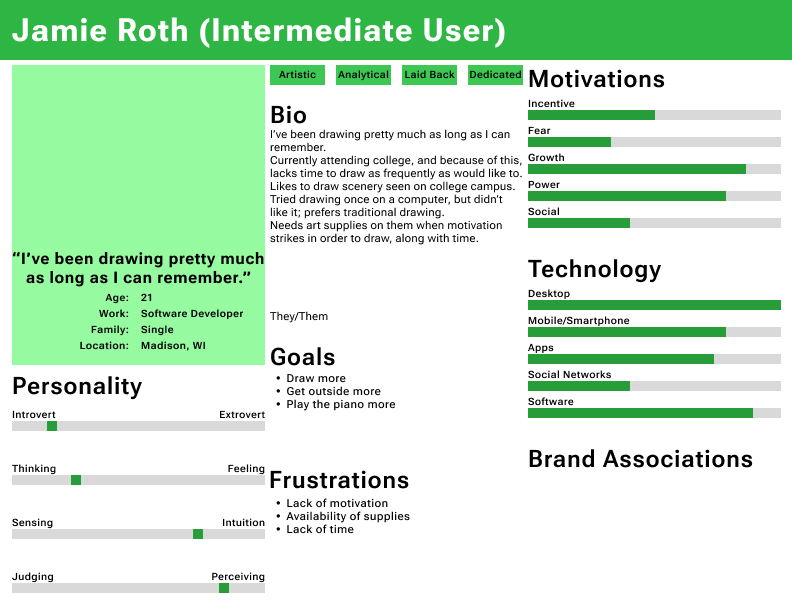

Persona 2 - Jamie (Intermediate) wants to preview some of their existing drawings, then getting inspired, wants to resume a previously unfinished drawing, they don't need the animations.

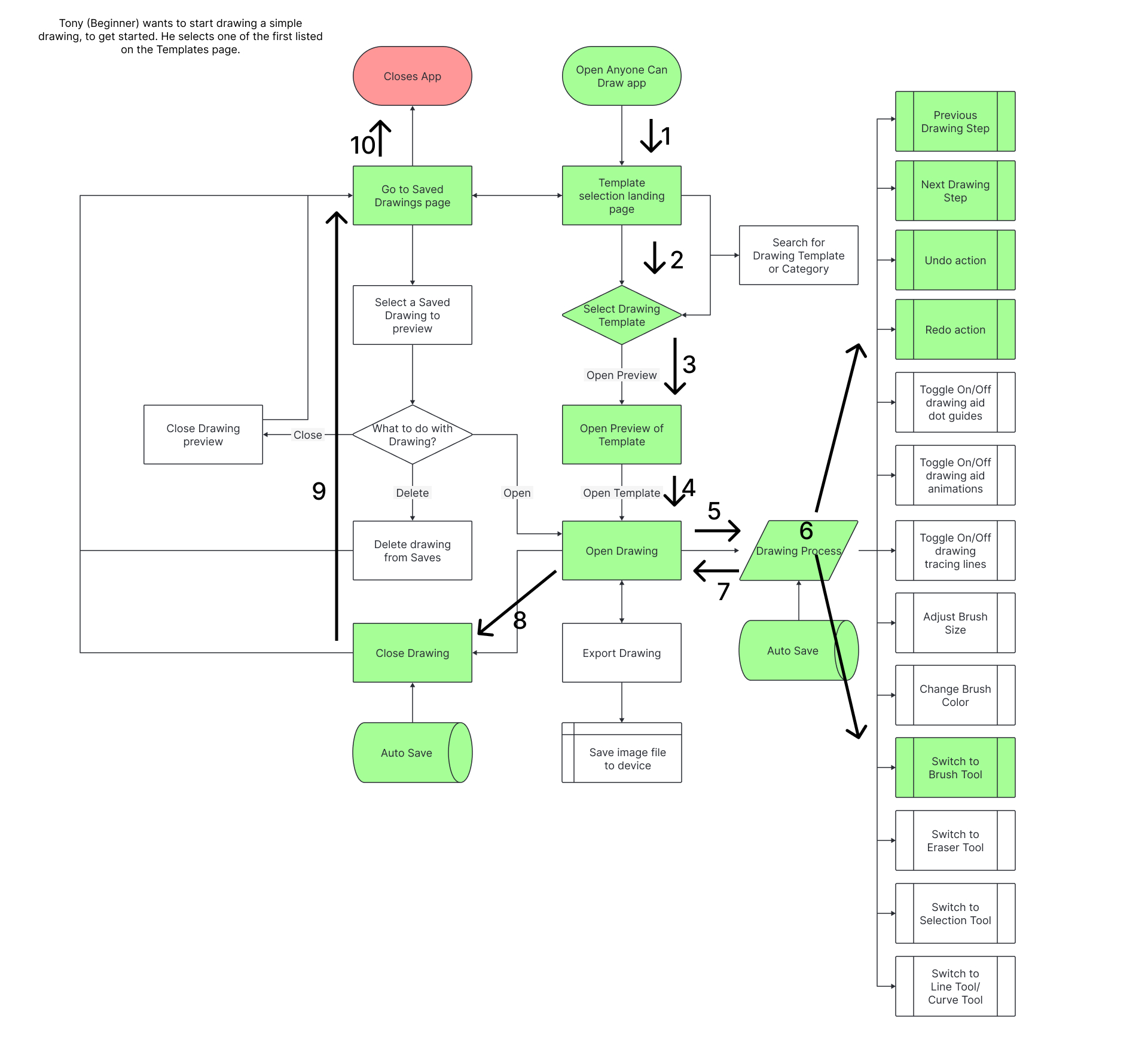

Persona 3 - Tony (Beginner) wants to start drawing a simple drawing, to get started. He selects one of the first listed on the Templates page.

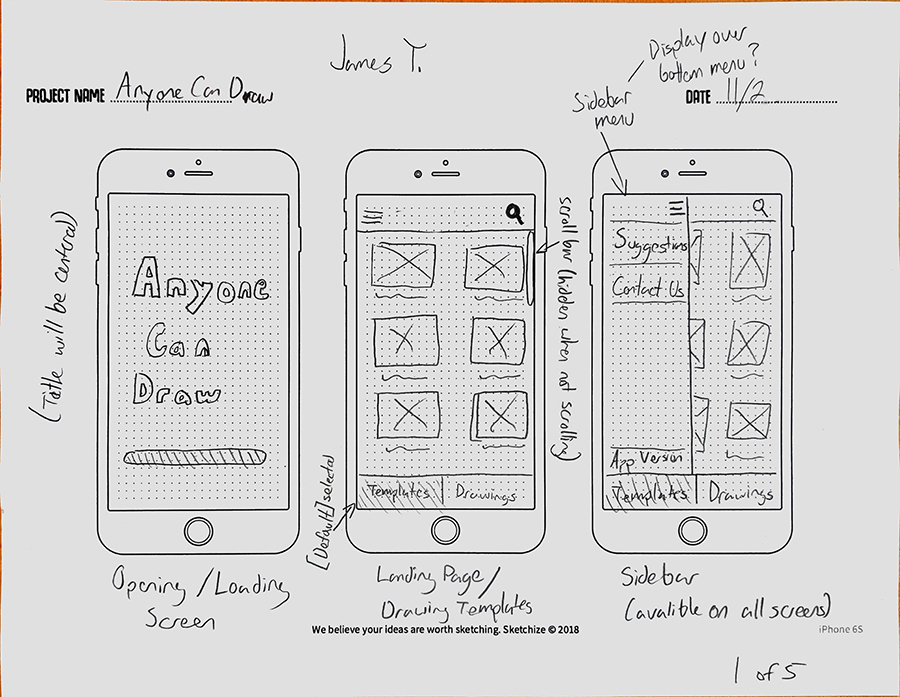

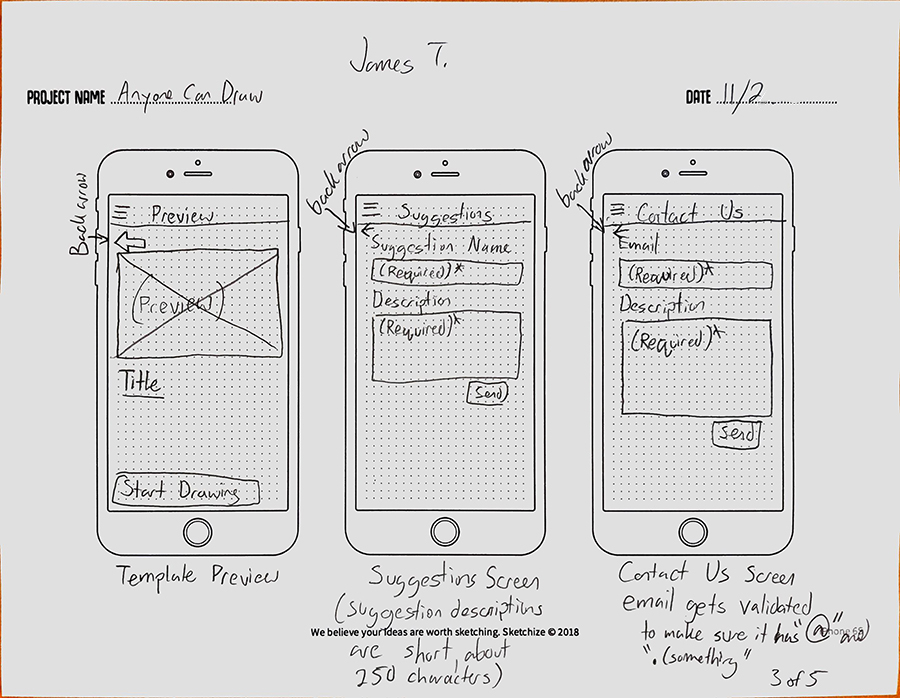

Wireframe Sketches

Low-Fi Wireframe

Version 1

Color Scheme

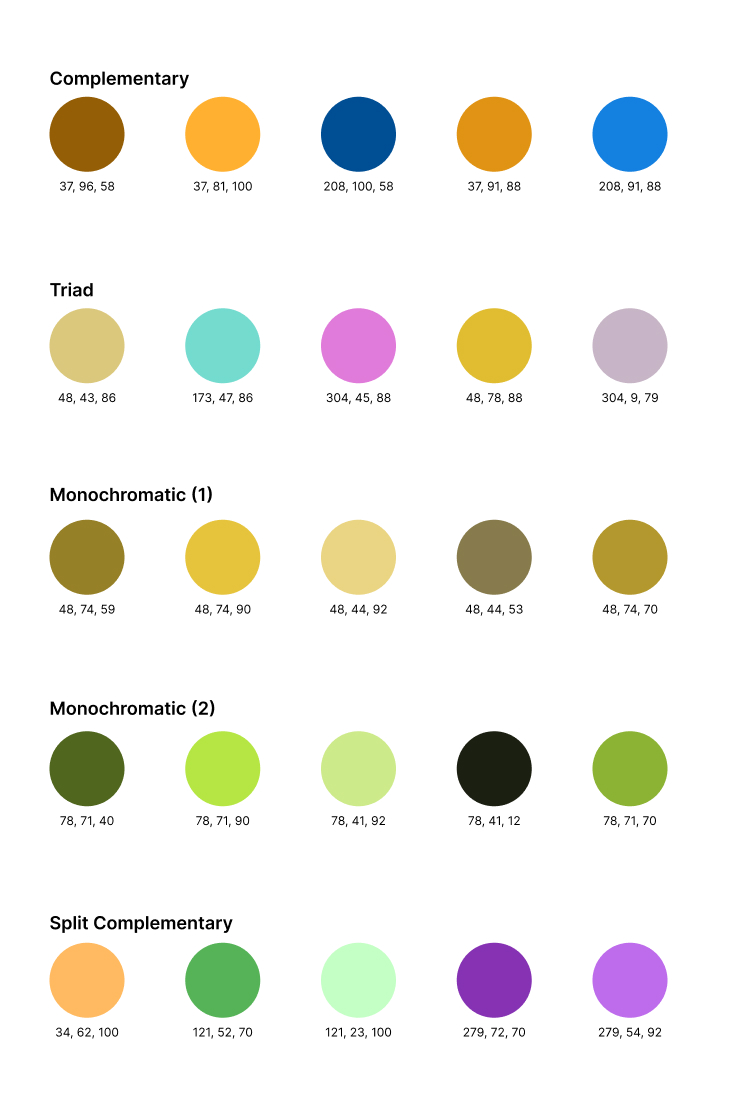

I used Adobe Color to come up with some color schemes that could work for my app. Starting with complementary colors, to triad, then I tried two monochromatic styles, and a I did one split complementary.

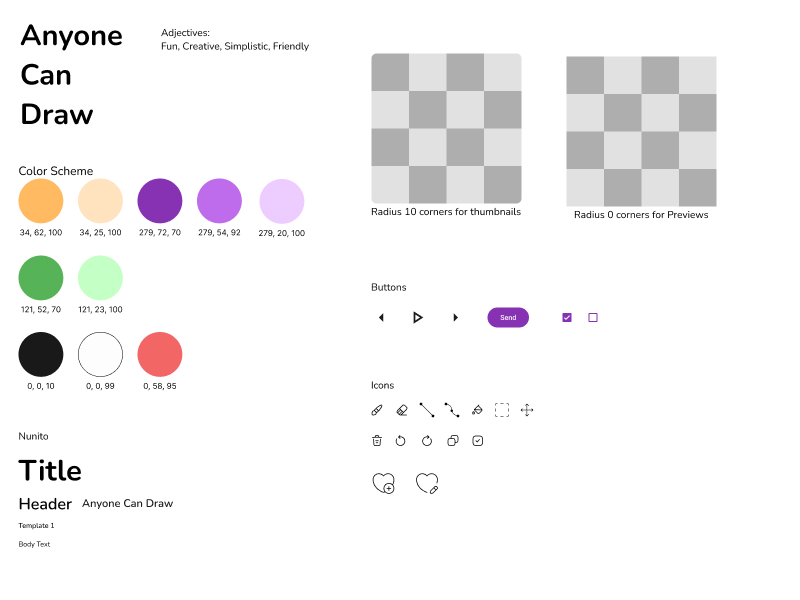

Style Tile

I liked the split complementary color scheme the most and moved forward with that one.

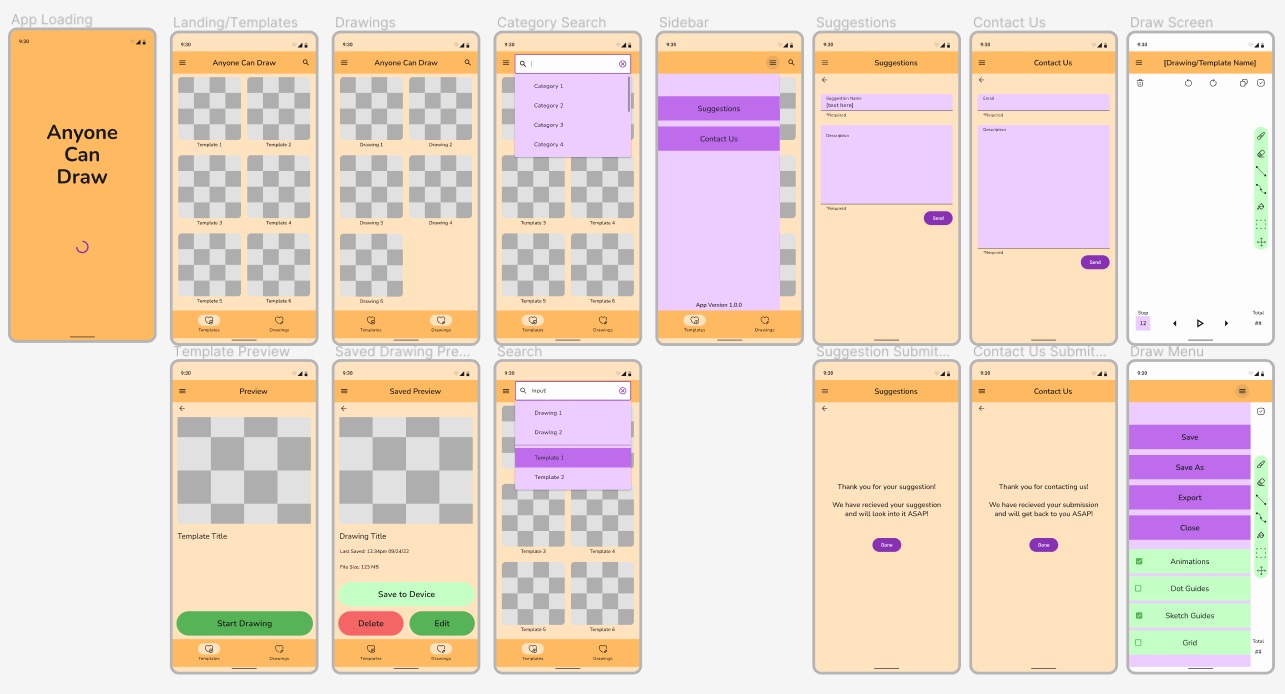

Completed Wireframe (Version 1)

---

Revised Version (2)

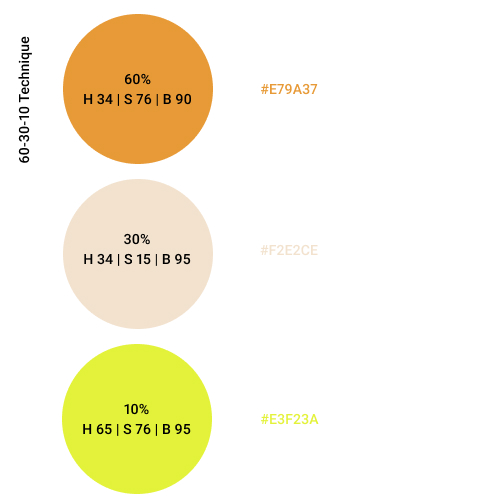

Color Exploration

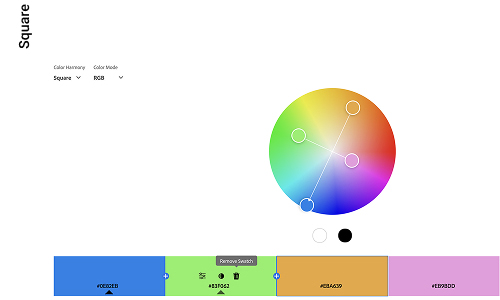

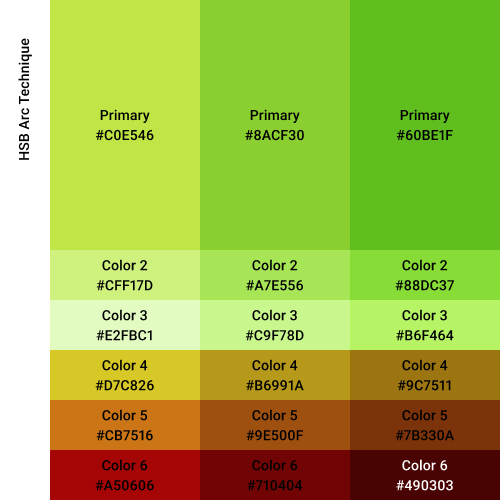

I wanted to change the color theme of my Anyone Can Draw app, so I came up with a few possible new color schemes:

In the end, I chose the third (right-most) HSB Arc Technique.

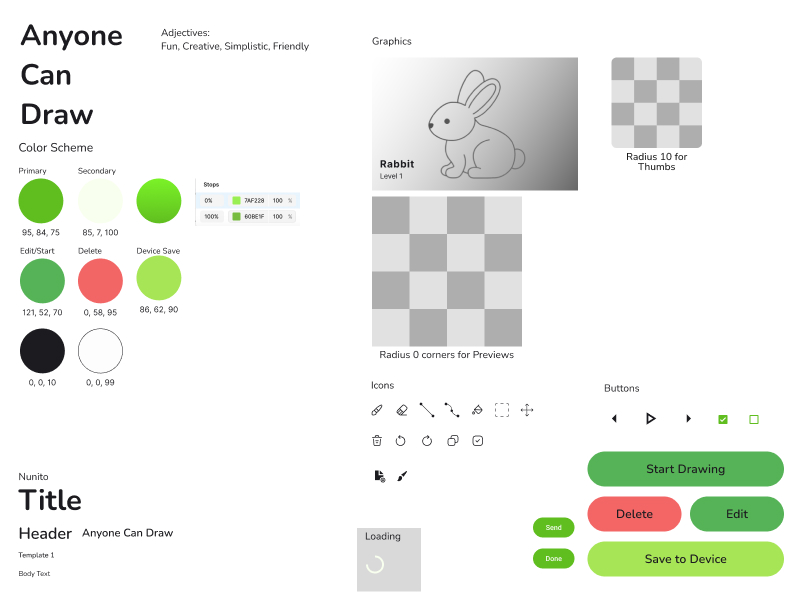

Updated Style Tile

Finalized Prototype Version 2
